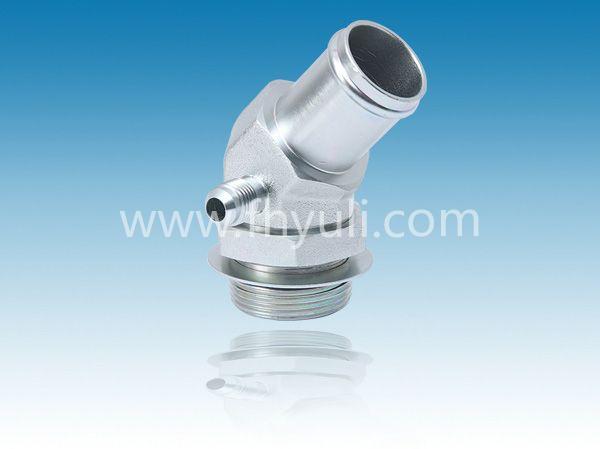

【產品名稱】 焊接式過渡接頭 4603-P不規則系列
【所屬分類】 焊接式過渡接頭 【產品型號】 4603-P 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| 品牌： | NJ |
| 型號： | 4603-P |
| 材質： | 碳鋼 |
| 規格： | 45度彎頭 |
| 加工定制 | 是 |
| 適用范圍： | 機械設備 |
| 螺紋類型： | 直螺紋 |
| 鏈接方式 | 螺紋 |
| Product ID | Description | B1 TUBE O.D. | B2 AORB | B1 DRILL | B2 DRILL | L LGTH | M LGTH | C HEX | Y FLATS |
| 4603-04-04-NWO-FG | 04HB-04MAORB 45°FORGED 1 | 1/4 | 7/16-20 | 0.189 | 0.172 | 1.562 | 1.046 | 0.563 | 0.500 |
| 4603-06-06-NWO-FG | 06HB-06MAORB 45°Elb Forg | 3/8 | 9/16-18 | 0.295 | 0.297 | 1.593 | 1.140 | 0.688 | 0.625 |
| <4603-08-08-NWO-FG | 08HB-08MAORB 45°Elb Forg | 1/2 | 3/4-16 | 0.406 | 0.391 | 1.625 | 1.296 | 0.875 | 0.812 |
| 4603-10-08-NWO-FG | 10HB-08MAORB 45°Elb Forg | 5/8 | 3/4-16 | 0.500 | 0.391 | 1.700 | 1.320 | 0.875 | 0.812 |
| 4603-10-10-NWO-FG | 10HB-10MAORB 45°Elb Forg | 5/8 | 7/8-14 | 0.500 | 0.484 | 1.609 | 1.515 | 1.000 | 0.937 |
| 4603-10-12-NWO-FG | 10HB-12MAORB 45°Elb Forg | 5/8 | 1 1/16-12 | 0.500 | 0.609 | 1.880 | 1.740 | 1.250 | 1.125 |
| 4603-12-08-NWO-FG | 12HB-08MAORB 45°Elb Forg | 3/4 | 3/4-16 | 0.626 | 0.391 | 1.643 | 1.300 | 0.875 | 0.812 |
| 4603-12-10-NWO-FG | 12HB-10MAORB 45°FORGED 1 | 3/4 | 7/8-14 | 0.626 | 0.484 | 1.650 | 1.590 | 1.000 | 0.937 |
| 4603-12-12-NWO-FG | 12HB-12MAORB 45°Elb Forg | 3/4 | 1 1/16-12 | 0.626 | 0.609 | 1.703 | 1.734 | 1.250 | 1.125 |
| 4603-12-16-NWO-FG | 12HB-16MAORB 45°Elb Forg | - | - | - | - | - | - | - | - |
| 4603-16-12-NWO-FG | 16HB-12MAORB 45°Elb Forg | 1 | 1 1/16-12 | 0.843 | 0.609 | 1.780 | 1.720 | 1.250 | 1.125 |
| 4603-16-16-NWO-FG | 16HB-16MAORB 45°Elb Forg | 1 | 1 5/16-12 | 0.843 | 0.844 | 1.859 | 1.859 | 1.500 | 1.375 |
| 4603-20-12-NWO-FG | 20HB-12MAORB 45°FORGED 1 | 1-1/4 | 1 1/16-12 | 1.094 | 0.609 | 1.870 | 1.878 | 1.250 | 1.375 |
| 4603-20-16-NWO-FG | 20HB-16MAORB 45°Elb Forg | 1-1/4 | 1 5/16-12 | 1.094 | 0.844 | 1.870 | 1.900 | 1.500 | 1.375 |
| 4603-20-20-NWO-FG | 20HB-20MAORB 45°Elb Forg | 1-1/4 | 1 5/8-12 | 1.094 | 1.078 | 1.921 | 1.906 | 1.875 | 1.750 |
| 4603-24-16-NWO-FG | 24HB-16MAORB 45°Elb Forg | - | - | - | - | - | - | - | - |
| 4603-24-20-NWO-FG | 24HB-20MAORB 45°Elb Forg | 1-1/2 | 1 5/8-12 | 1.343 | 1.078 | 1.990 | 1.857 | 1.875 | 1.750 |
| 4603-24-24-NWO-FG | 24HB-24MAORB 45°Elb Forg | 1-1/2 | 1 7/8-12 | 1.343 | 1.312 | 1.968 | 1.906 | 2.125 | 2.000 |
| 4603-32-32-NWO-FG | 32HB-32MAORB 45°Elb Forg | 2 | 2 1/2-12 | 1.843 | 1.781 | 2.180 | 1.859 | 2.750 | 2.625 |
