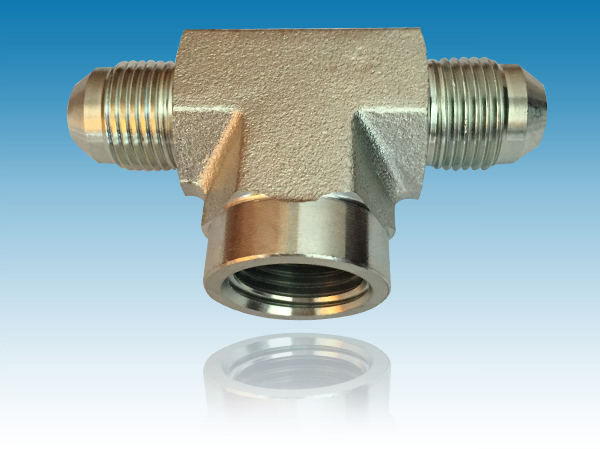

【產品名稱】 美制JIC螺紋37°擴口式三通接頭 2602系列
【所屬分類】 美制JIC螺紋37°接頭 【產品型號】 2602 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| 品牌： | NJ |
| 型號： | 2602 |
| 材質： | 碳鋼 |
| 規格： | 三通接頭 |
| 加工定制 | 是 |
| 適用范圍： | 機械設備 |
| 螺紋類型： | 直螺紋 |
| 鏈接方式 | 螺紋 |
| Product ID | Descr iption | TUBE O.D. | B1 SAE 37 | B2 SAE 37 | A3 NPTF | B1 DRILL | B2 DRILL | M1 LGTH | M2 LGTH | N LGTH | Y FLATS |
| 2602-03-03-02-FG | 03MJ-03MJ-02FPTeeForg | 3/16 | 3/8-24 | 3/8-24 | 1/8-27 | 0.125 | 0.125 | 1.03 | 1.03 | 0.66 | 0.562 |
| 2602-04-04-02-FG | 04MJ-04MJ-02FPTeeForg | 1/4 | 7/16-20 | 7/16-20 | 1/8-27 | 0.172 | 0.172 | 1.08 | 1.08 | 0.66 | 0.562 |
| 2602-04-04-04-FG | 04MJ-04MJ-04FPTeeForg | 1/4 | 7/16-20 | 7/16-20 | 1/4-18 | 0.172 | 0.172 | 1.22 | 1.22 | 0.88 | 0.750 |
| 2602-05-05-02-FG | 05MJ-05MJ-02FPTeeForg | 5/16 | 1/2-20 | 1/2-20 | 1/8-27 | 0.234 | 0.234 | 1.08 | 1.08 | 0.66 | 0.562 |
| 2602-06-06-04-FG | 06MJ-06MJ-04FPTeeForg | 3/8 | 9/16-18 | 9/16-18 | 1/4-18 | 0.297 | 0.297 | 1.23 | 1.23 | 0.88 | 0.750 |
| 2602-06-06-06-FG | 06MJ-06MJ-06FPTeeForg | 3/8 | 9/16-18 | 9/16-18 | 3/8-18 | 0.297 | 0.297 | 1.31 | 1.31 | 1.02 | 0.875 |
| 2602-08-08-04-FG | 08MJ-08MJ-04FPTEEFORGED1 | 1/2 | 3/4-16 | 3/4-16 | 1/4-18 | 0.391 | 0.391 | 1.42 | 1.42 | 1.02 | 0.875 |
| 2602-08-08-06-FG | 08MJ-08MJ-06FPTeeForg | 1/2 | 3/4-16 | 3/4-16 | 3/8-18 | 0.391 | 0.391 | 1.42 | 1.42 | 1.02 | 0.875 |
| 2602-08-08-08-FG | 08MJ-08MJ-08FPTeeForg | 1/2 | 3/4-16 | 3/4-16 | 1/2-14 | 0.391 | 0.391 | 1.52 | 1.52 | 1.23 | 1.062 |
| 2602-10-10-04-FG | 10MJ-10MJ-04FPTEEFORGED1 | 5/8 | 7/8-14 | 7/8-14 | 1/4-18 | 0.484 | 0.484 | 1.64 | 1.64 | 1.04 | 1.062 |
| 2602-10-10-08-FG | 10MJ-10MJ-08FPTeeForg | 5/8 | 7/8-14 | 7/8-14 | 1/2-14 | 0.484 | 0.484 | 1.64 | 1.64 | 1.23 | 1.062 |
| 2602-12-12-08-FG | 12MJ-12MJ-08FPTEEFORGED1 | 3/4 | 1-1/16-12 | 1-1/16-12 | 1/2-14 | 0.609 | 0.609 | 1.89 | 1.89 | 1.36 | 1.312 |
| 2602-12-12-12-FG | 12MJ-12MJ-12FPTeeForg | 3/4 | 1-1/16-12 | 1-1/16-12 | 3/4-14 | 0.609 | 0.609 | 1.89 | 1.89 | 1.36 | 1.312 |
| 2602-14-14-12-FG | 14MJ-14MJ-12FPTEEFORGED1 | 7/8 | 1-3/16-12 | 1-3/16-12 | 3/4-14 | 0.719 | 0.719 | 1.86 | 1.86 | 1.42 | 1.312 |
| 2602-16-16-16-B | 16MJ-16MJ-16FPTeeBrass | 1 | 1-5/16-12 | 1-5/16-12 | 1-11-1/2 | 0.844 | 0.844 | 2.17 | 2.17 | 1.62 | 1.625 |
| 2602-16-16-16-FG | 16MJ-16MJ-16FPTeeForg | 1 | 1-5/16-12 | 1-5/16-12 | 1-11-1/2 | 0.844 | 0.844 | 2.17 | 2.17 | 1.62 | 1.625 |
| 2602-20-20-20-FG | 20MJ-20MJ-20FPTeeForg | 1-1/4 | 1-5/8-12 | 1-5/8-12 | 1-1/4-11-1/2 | 1.078 | 1.078 | 2.33 | 2.33 | 1.70 | 1.875 |
| 2602-24-24-24-FG | 24MJ-24MJ-24FPTeeForg | 1-1/2 | 1-7/8-12 | 1-7/8-12 | 1-1/2-11-1/2 | 1.312 | 1.312 | 2.89 | 2.89 | 2.08 | 2.562 |
